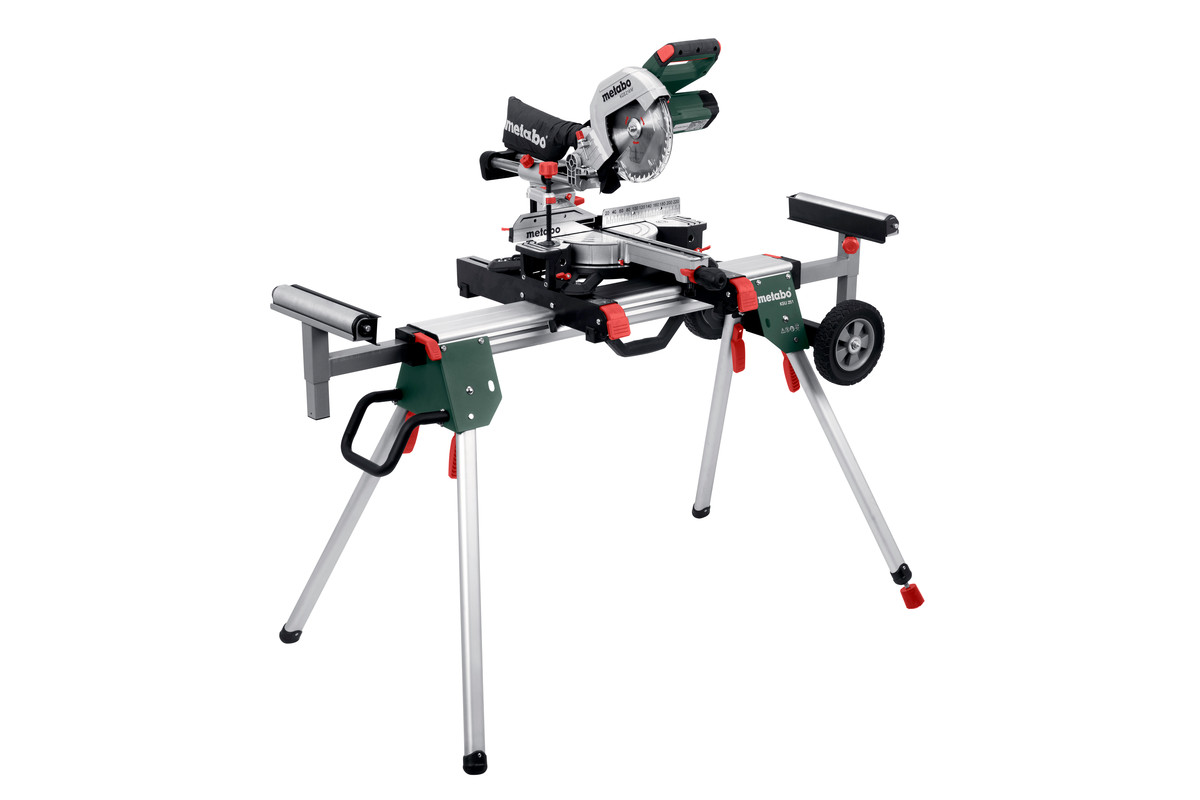

KATKAISU- JA JIIRISAHA KGS 216 M LIUKUPÖYTÄ + KSU 251 JALUSTA METABO

Maximum cutting width 90°/45°: 305 / 215 mm // 12 / 8 1/2 "
Maximum cutting depth at 90°/45°: 70 / 40 mm // 2 3/4 / 1.57 "
Rated input power: 1200 W
Rated input power S1 100%: 1200 W
Rated input power S6 20%: 1500 W

Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly
Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
Large cutting capacity thanks to sliding function for wide work pieces
Turntable with fast, precise setting of common angles using stop points
Saw blade inclination from -2 to 47°, therefore also suited for undercuts
Robust die-cast aluminium design for the highest demands
Effective dust extraction via integrated dust scoop
Soft start for long service life of motor and drive
Extendable table width extensions, also removable to put underneath extremely long work pieces
Quick-action clamp for secure fixing of the work piece from the top or front
Depth guide for easy creation of grooves
All scales and operating elements are visible from the working position and can be operated intuitively
Ergonomic handle areas for carrying with one or two hands

Technical data
Dimensions 710 x 476 x 512 mm // 27.95 x 18.74 x 20.15 "
Support surface 345 x 730 mm // 13 1/2 x 28 3/4 " mm
Maximum cutting width 90°/45° 305 / 215 mm // 12 / 8 1/2 "
Maximum cutting depth at 90°/45° 70 / 40 mm // 2 3/4 / 1.57 "
Cutting capacity 90°/90° 305 x 70 mm // 12 x 2 3/4 "
Cutting capacity 45°/45° 215 x 40 mm // 8 1/2 x 1.57 "
Turntable setting left/right 50 / 50 °
Saw blade tilt left/right 47 / 2 °
Saw blade 216 x 30 mm // 8 1/2 x 1.181 "
Rated input power 1200 W
Rated input power S1 100% 1200 W
Rated input power S6 20% 1500 W
No-load speed 5000 rpm
Speed at rated load 3750 rpm
Cutting speed 57 m/s // 187 ft/min
Weight 13.4 kg / 29.54 lbs
Cable length 2 m / 7 ft
Noise emission
Sound pressure level 85 dB(A)
Sound power level (LwA) 98 dB(A)
Uncertainty of measurement K 3 dB(A)

Scope of delivery
- Saw blade "precision cut wood - classic", 216x30, Z40
- Material clamp
- Tool for saw blade change
- Cable winder
- Chip Collection Bag
- Machine stand KSU 251
- 2 Table length extensions
- Length Guide
