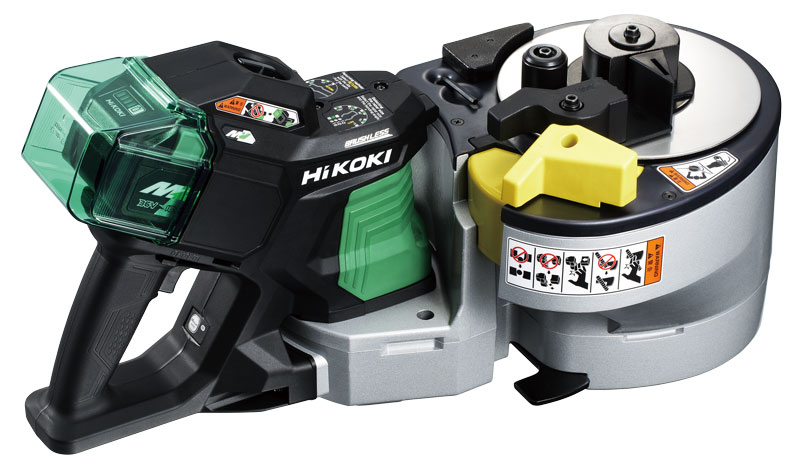

RAUDOITUSTAIVUTIN/LEIKKURI VB3616DA

Toimituksessa
Toimituksessa 2 kpl MULTI VOLT-akkuja, pikalatauslaite jäähdytyspuhaltimella, säilytyslaukku pyörillä ja taivutusvaste Ø62 mm.

Tuotenro 16010001
NOBBnr 56630715
EAN-nro 4966376331864
EL-nr.
Tuoteteksti 1 RAUDOITUSTAIVUTIN/LEIKKURI VB3616DA
Tuoteteksti 2 HIKOKI 36V 2XBSL36A18
Yksikkö KPL
Pakkausmäärä 1
Tuote Katkaisu-taivutin 36V MULTI VOLT
Malli VB3616DA
Akkukiinnitys Slide
Mitat (P x L x K) 520 x 230 x 241 mm
Paino 18,9 kg (BSL36A18) / 19,2 kg (BSL36B18)
Akku / latauslaite BSL36A18 / UC18YSL3
Latausaika 32 min
Kapasiteetti teräkseen Ø8-16 mm (KS 500)
Leikkuunopeus 2,6 s (16 mm)
Taivutuskapasiteetti 3 (10 mm) / 2 (12 mm) / 1 (16 mm)
Leikkuita per lataus 170 (BSL36A18) / 270 (BSL36B18)
Taivutusnopeus 3,8 s (180° Ø16 mm)
Leikkuukapasiteetti 2 (10 mm) / 1 (12 mm) / 1 (16 mm)

Specifications
Battery Voltage*1 36V

Capacity

Material
Rebar

Bar Dia.
ø8 - 16mm

Size (Length x Width x Height)
510 x 230 x 241mm

Weight*2
18.6kg (BSL36A18)
19.2kg (BSL36B18)

Standard Accessories
2 Batteries (BSL36A18), Charger (UC18YSL3),
Cutter Set, Wrench, Battery Covers, Carrying Case

Cutting
One or More at Once
ø10mm : 2 Rebars
ø13mm : 1 Rebar
ø16mm : 1 Rebar

Image of cutting one ø16mm rebar

Image of cutting two ø10mm rebars at the same time

Bending
One or More at Once
ø10mm : 3 Rebars
ø13mm : 2 Rebars
ø16mm : 1 Rebar

Image of bending one ø16mm rebar

Image of bending three ø10mm rebars at the same time

Dial Setting of the Bending Angle
With the turn of a pre-set dial, bends can be made in variety of angles.

Dial Setting of the Bending Angle

Fine Adjustment of the Bending Angle

Variable Speed Switch Trigger
The switch trigger allows manual adjustment of the rebar angle based on your visual estimation.

Reverse Rotation Mode
You can also reverse the bending roller by pulling the trigger, which makes it easy to remove bent rebars or check bending angles.

Variable Speed Switch Trigger and Reverse Rotation Mode

Runtime per Charge
(Using the BSL 36A18 battery)

ø10mm / SD 295*

ø13mm / SD 295*

ø16mm / SD 345*

Cutting
Approx. 350 Cuts
(2 cuts at a time) Approx. 170 Cuts Approx. 130 Cuts

Bending (90°)
Approx. 630 Bends
(3 bends at a time) Approx. 310 Bends
(2 bends at a time) Approx. 140 Bends
* SD345 and SD295 are material designations of JIS (Japanese Industrial Standards). The figures are for reference only because applicable rebar standard is different depending on the area.
SD345: yield strength between 345N/mm2 and 440N/mm2
SD295A: over 295N/mm2 yield strength, 440 to 600N/mm2 tensile strength
SD295B: 295 to 390N/mm2 yield strength, over 440N/mm2 tensile strength
