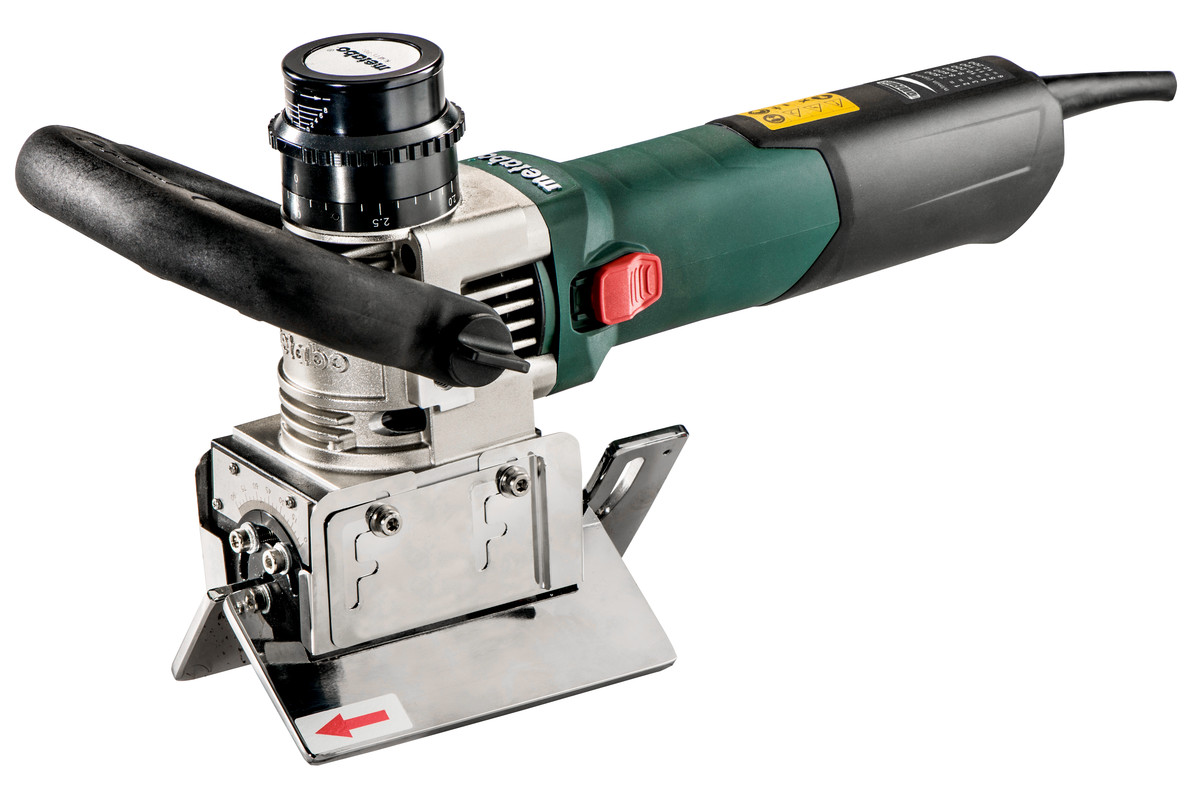

VIISTEKONE KFM 15-10 F METALLILLE NETABO

Metal bevelling tool for chamfer heights up to 10 mm for weld seam preparation
One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
Precise setting of the chamfer angle directly via the guide plates
Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
Controlled working by virtue of large-scale guide plates
Stop roller to guide along pipes for easy preparation of weld seams
Bail handle adjusts without tools for secure, even guiding
Metabo Marathon-motor with patented dust protection for long service life
Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
Electronic overload protection, soft start and restart protection
Protection of the user by virtue of lateral plates for conveying the chips
With metaBOX, the intelligent solution for transport and storage

Characteristics:
No-load speed 7800 - 12200 rpm
Rated input power 1500 W
Output power 810 W
Type of edges Chamfer
Chamfer angles 0 - 90 °
Max. chamfer width 45° 14 mm / 9/16 "
Max. chamfer height at 45° 10 mm / 3/8 "
Grading of cutting depth setting 0.1 mm / 0.00394 "
Curves smallest outer Ø 75 mm / 2 15/16 "
Weight (without power cable) 4.9 kg / 10.8 lbs
Cable length 4 m / 13 ft
Vibration
Vibration 2.5 m/s²
Uncertainty of measurement K 1.5 m/s²
Noise emission
Sound pressure level 92 dB(A)
Sound power level (LwA) 103 dB(A)
Uncertainty of measurement K 3 dB(A)
