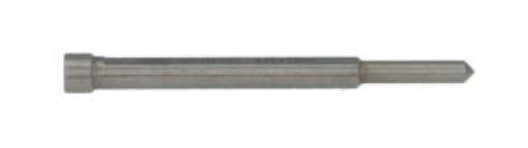

KEERNAPORAN KESKITYSTAPPI STEEL PIN 6.35 / 5.3 x 77mm NORTON

Ei varastossa

Pakkauskoko: 1

  • Tuotekoodi: NSP78072741675
  • Viivakoodi 8719362274197
  • Myyntierä: 1
  • Paino: 0,008 kg/KPL
  • Muu tuotenro: 78072741675
  • Tullikoodi: 82079071
  • Normi: Keernapora
  • Kauppanimi: Keernaporan keskitystappi
  • Brändi: NORTON
  • Alkuperämaa: IT
  • Koko: 5,3 X 77

Norton Starline HSS Weldon Shank core drills are made of solid high-speed steel and recommended for cutting steel up to 750 N/mm2 (possible up to 900 N/mm2).

A core drill cuts only a groove at the periphery of the hole and leaves a solid core at the center.
Made of solid high-speed steel, recommended for cutting steel up to 750 N/mm2 (possible up to 900 N/mm2).
The ejector STEEL PIN is positioned exactly on the centre punch mark. Switch on the magnet, and the machine and annular cutter are in the drilling position.
WELDON SHANK; Most popular shank. With high precision fixing arbor have more securate clampling.
WELDON SHANK; Suitable for most brands of magnet drilling machines, like; Alfra, Hougen, Jancy, Euroboor, Ruko...
PIN; 6,35mmx77 suitable for 25 mm cutting length. PIN; 6,35x102 mm suitable for 50 mm cutting length

Download Technical Data Sheet
Industry MRO
Machine Core Drill
Surface Non-Ferrous
Plastic & Composites
Steel
Cast Iron
Application Drilling
Sub marketDrilling and cutting operations
