KONEKIERRETAPPI Kombi M12 X 1.75 LÄPIREIKÄ HSC

Varastossa

Pakkauskoko: 1

  • Tuotekoodi: KBR30M12175HSC
  • Viivakoodi 4022835370505
  • Myyntierä: 1
  • Paino: 0,059 kg/KPL
  • Muu tuotenro: 37050
  • Tullikoodi: 8207401000
  • Normi: kierretappi
  • Kauppanimi: Konekierretappi
  • Brändi: VÖLKEL
  • Alkuperämaa: DE
  • Läpimitta: M12
  • Pituus: 115
  • Pinta/materiaali: HSC
  • Malli: Kombi
  • Koko: M12
  • Laji: läpireikä

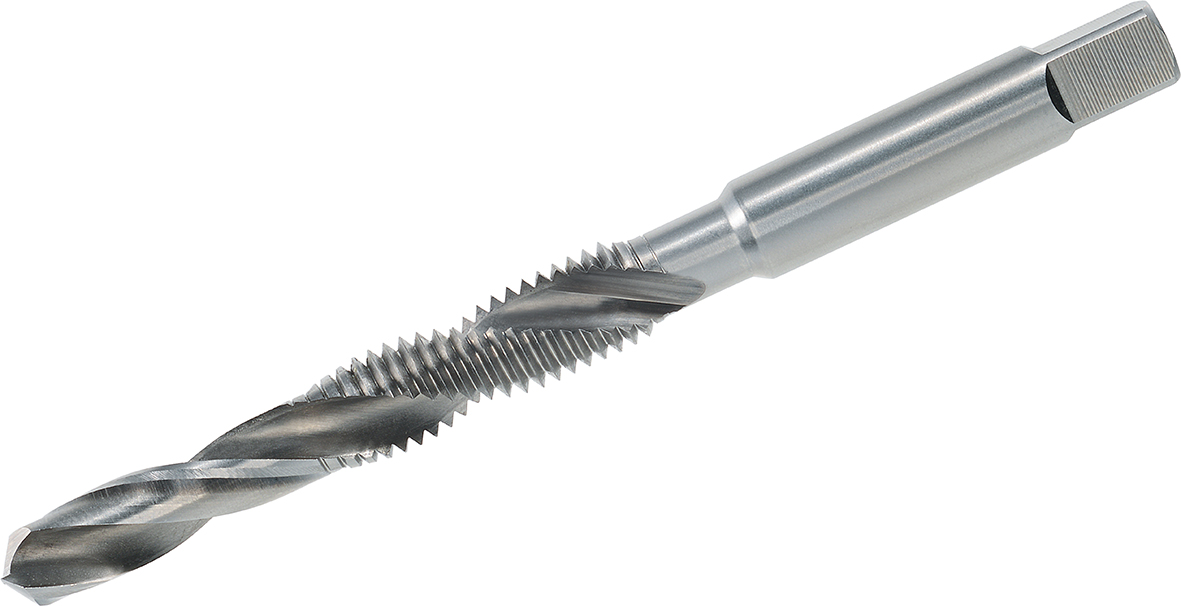

Combined Machine Tap with round shank and square drive 30° Spiral Flute HSSE

The Combined Tap enables the user to produce the tapping drill hole and the through thread in one operation without any tool changing. The tool incorporates a twist drill before the thread tapping part. This tool can produce through threads up to a maximuthreaded depth of 2 x D. The Combined Tap is suitable for universal use in materials of mediumechanical strength: non-alloyed and alloyed steel sorts up to 600 N/mm², malleable cast iron, nodulized graphite cast iron, copper, brass, aluminium, aluminium-magnesiuand zinc alloys, red bronze, electron metal, pressure-cast zinc. This tool should be used on machines possesing an RPswitchover facility for drilling and tapping. The feed rate must be adapted to the particular operation required - drilling or tapping. Tapping chucks with pressure compensation may not be used.

Type of thread metric ISO-thread
Standard Works Standard
Material HSSE
Tolerance ISO2 (6H)

  • Tuotekoodi: KBR30M12175HSC
