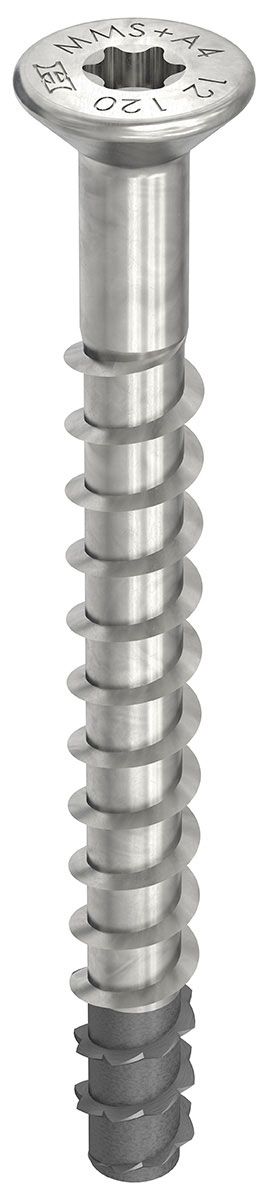

RUUVIANKKURI MMS F 7,5X75 A4 TX30 UPPOK. (50)

Varastossa

Pakkauskoko: 50

  • Tuotekoodi: MMUA4075075
  • Viivakoodi 4019787527880
  • Myyntierä: 50
  • Paino: 1,97 kg/100
  • Muu tuotenro: 52788
  • UNSPSC: 31161526
  • Normi: Ruuviankkuri uppokanta
  • VE-normi: Betoniruuvi
  • Kauppanimi: Ruuviankkuri uppokanta
  • Brändi: HECO
  • Läpimitta: 7,5
  • Pituus: 75
  • Pinta/materiaali: A4
  • Väännin: TX30
  • Malli: uppokanta

MULTI-MONTI-plus F A4 7,5 x 75, countersunk head, T-Drive, 50 pcs.

The MULTI-MONTI®-plus A4 (MMS-plus A4) screw anchor is an enhancement of the MULTI-MONTI® A4 concrete screw. It is driven directly into a predrilled hole without a dowel and has load-bearing strength right from the word go. The reinforced toothing on the screw tip cuts an internal thread in the material during insertion. This creates a positive locking connection, which is subsequently used for the anchoring. This not only facilitates the installation procedure, but also guarantees the craftsman a high level of application safety. The MULTI-MONTI®-plus A4 concrete screw can be driven in close to the edge and without a torque wrench and is completely removable.

- The screw anchor with maximum ease of installation
- Optimised concrete thread for powerful anchoring
- Two embedment depths for more flexibility
- Increased product assortment and for various applications
- Available in stainless steel A4 1.4401, stainless steel HCR 1.4529 on request
- Phosphated functional tip ensures a reliable undercut of the concrete
- Approved and monitored product for cracked and non-cracked concrete

GTIN/EAN: 4019787527880
Product number: 52788
Diameter of clearance hole in the fixture, df [mm]: 9
Embedment, hnom reduced [mm]: 65/50/35
Embedment, hnom standard [mm]: 55/40
Empfohlene max. Leistungsabgabe des Schlagschraubers, Tmax2 [Nm]: 120
Min. edge distance, cmin [mm]: 30
Mindestbauteildicke, hmin [mm]: 100
Recommended max. power output of the impact screw driver, Tmax1 [Nm]: 120
Diameter, d [mm]: 7,5
Length, l [mm]: 75
Thread length, lg [mm]: 59
Headdiameter, dk [mm]: 13,6
Clamping strength, tfix standard [mm]: 20/35
Clamping strength, tfix reduced [mm]: 10/25/40
Drill diameter, d0 [mm]: 6
Drill hole depth, h standard [mm]: 60/45
Drill hole depth, h reduced [mm]: 75/55/40
Head form: countersunk head
Thread: concrete thread
Size of recess: T-30
Recess: T-Drive
Material: Stainless steel A4, self-colour
Packaged quantity: 50

European technical assessment: ETA-15/0784
Fire-resistance rating: F120/R120
Sprinkler-approval: Yes
