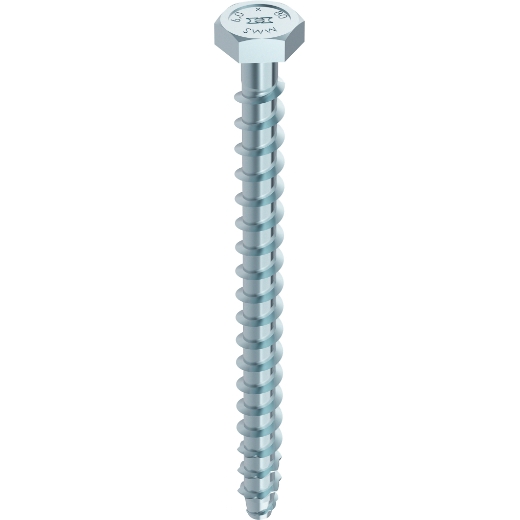

RUUVIANKKURI MMS-S 16x10x80 ZN SW24 Heco

The screw anchor MULTI-MONTI-plus (MMS-plus), is an enhancement of the concrete screw MULTI-MONTI. Without the need for wall plugs, the certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable. Its reinforced toothed concrete thread cuts an internal thread into the building material. This creates a positive locking connection, which is subsequently used for the anchoring.The MULTI-MONTI-plus system is not only fast and easy to mount, but also ensures a secure connection. This is confirmed by the available ETA-certification. The screws can be mounted close to the edge and without a torque wrench, whatàs more they can be removed and reused after checking the threads condition.
  Easy settable screw anchor even in case of worn drills
  Optimized concrete thread with full threaded variations for highest demands
  Two embedment depths for more flexibility
  Settable by means of power-tools and immediately loadbearing
  Increased product assortment and dimensions for various applications taking design and application areas into account
  Toothed functional tip reduces the abrasion and thus permits multiple use in temporary fixations
  Wider approved assortment of products for ETA option 1 from MMS-plus 6, including seismic from diameter 10mm
GTIN/EAN 4019787542746
Article number 54274
Clamping strength, tfix1 5 mm
Size of recess SW-24
Drill diameter, d0 14 mm
Diameter of clearance hole in the fixture, df 75 mm
Thread length, lg 70 mm
Headdiameter, dk 24,0 mm
Diameter, d 16,0 mm
Length, l 80 mm
Head form hexagon head
Recess hexagon head
Surface bright zinc plated, A2K
Material carbon steel

German DIBt-approval Z-21.8-2061
