RUUVIANKKURI MMS+ SS 12x100 ZN SW15 KUUSIOLAIPPAK.

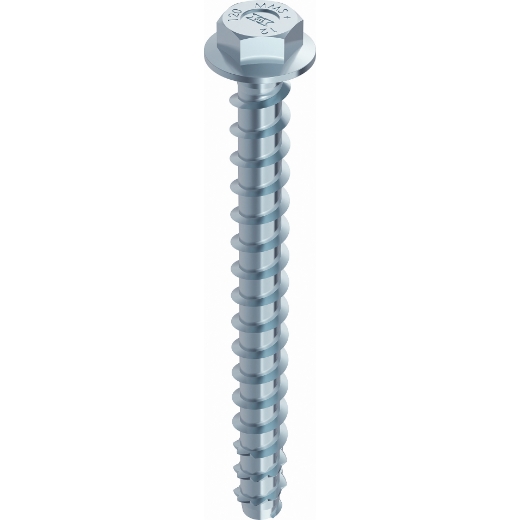

MULTI-MONTI-plus SS 12,0 x 100, hexagon head with combined washer, hexagon head, bright zinc plated, A2K, 25 pieces
The screw anchor MULTI-MONTI-plus (MMS-plus), is an enhancement of the concrete screw MULTI-MONTI. Without the need for wall plugs, the certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable. Its reinforced toothed concrete thread cuts an internal thread into the building material. This creates a positive locking connection, which is subsequently used for the anchoring.The MULTI-MONTI-plus system is not only fast and easy to mount, but also ensures a secure connection. This is confirmed by the available ETA-certification. The screws can be mounted close to the edge and without a torque wrench, whatàs more they can be removed and reused after checking the threads condition.
asy settable screw anchor even in case of worn drills
Optimized concrete thread with full threaded variations for highest demands
Two embedment depths for more flexibility
Settable by means of power-tools and immediately loadbearing
Increased product assortment and dimensions for various applications taking design and application areas into account
Toothed functional tip reduces the abrasion and thus permits multiple use in temporary fixations
Wider approved assortment of products for ETA option 1 from MMS-plus 6, including seismic from diameter 10mm
GTIN/EAN 4019787484114
Article number 48411
Clamping strength, tfix1 10 mm
Clamping strength, tfix2 25 mm
Size of recess SW-15
Drill diameter, d0 10,0 mm
Drill hole depth, h1 100 mm
Drill hole depth, h2 85 mm
Diameter of clearance hole in the fixture, df 14,5 mm
Embedment depth, hnom1 90 mm
Embedment, hnom2 75 mm
Thread length, lg 95 mm
Headdiameter, dk 22,0 mm
Recommended max. power output of the impact screw driver, Tmax1 250 Nm
Minimal thickness of concrete member, hmin 150 mm
Minimal thickness of concrete member, hmin2 125 mm
Min. edge distance, cmin 40 mm
Diameter, d 12,0 mm
Length, l 100 mm
Head form hexagon head with combined washer
Recess hexagon head
Surface bright zinc plated, A2K
Material carbon steel
European technical assessment ETA-15/0784
Fire-resistance rating F120/R120
Approval for sprinkler systems Yes
Approved seismic action category C1
German DIBt-approval Z-21.1-2103, Z-21.8-2061

entinen sormat 71067 RUUVIANKKURI MMS-SS 12x25x100 6416031710674 25/250
