RUUVIANKKURI MMS+ SS 6x60 ZN SW8 KUUSIOLAIPPAK.

Varastossa

Pakkauskoko: 100

  • Tuotekoodi: MML060060
  • Viivakoodi 4019787483858
  • Myyntierä: 100
  • Paino: 1,178 kg/100
  • Muu tuotenro: 48385/71061
  • UNSPSC: 31161526
  • Tullikoodi: 73181499
  • Normi: Ruuviankkuri
  • VE-normi: Betoniruuvi
  • Kauppanimi: Ruuviankkuri kuusiolaippakanta
  • Brändi: HECO
  • Alkuperämaa: DE
  • Läpimitta: 6
  • Pituus: 60
  • Pinta/materiaali: Zn Zpl
  • Väännin: SW 8
  • Malli: kuusiolaippakanta

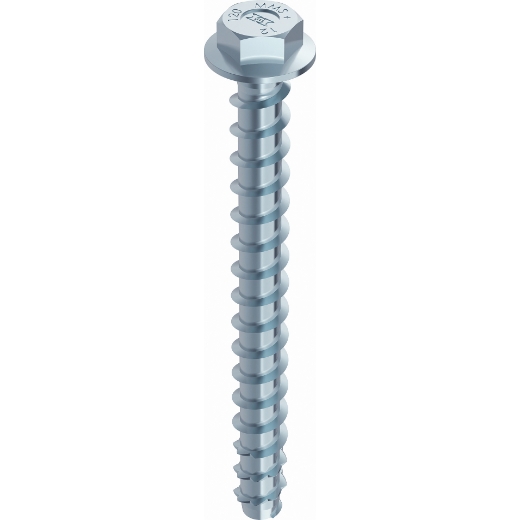

MULTI-MONTI-plus SS 6,0 x 60, hexagon head with combined washer, hexagon head, bright zinc plated, A2K, 100 pieces

The screw anchor MULTI-MONTI-plus (MMS-plus), is an enhancement of the concrete screw MULTI-MONTI. Without the need for wall plugs, the certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable. Its reinforced toothed concrete thread cuts an internal thread into the building material. This creates a positive locking connection, which is subsequently used for the anchoring.The MULTI-MONTI-plus system is not only fast and easy to mount, but also ensures a secure connection. This is confirmed by the available ETA-certification. The screws can be mounted close to the edge and without a torque wrench, whatàs more they can be removed and reused after checking the threads condition.
  Easy settable screw anchor even in case of worn drills
  Optimized concrete thread with full threaded variations for highest demands
  Two embedment depths for more flexibility
  Settable by means of power-tools and immediately loadbearing
  Increased product assortment and dimensions for various applications taking design and application areas into account
  Toothed functional tip reduces the abrasion and thus permits multiple use in temporary fixations
  Wider approved assortment of products for ETA option 1 from MMS-plus 6, including seismic from diameter 10mm
GTIN/EAN 4019787483858
Article number 48385
Clamping strength, tfix1 15 mm
Clamping strength, tfix2 25 mm
Size of recess SW-8
Drill diameter, d0 5,0 mm
Drill hole depth, h1 50 mm
Drill hole depth, h2 40 mm
Diameter of clearance hole in the fixture, df 7 mm
Embedment depth, hnom1 45 mm
Embedment, hnom2 35 mm
Thread length, lg 57 mm
Headdiameter, dk 11,0 mm
Recommended max. power output of the impact screw driver, Tmax1 100 Nm
Recommended max. power output of the impact screw driver, Tmax2 75 Nm
Minimal thickness of concrete member, hmin 100 mm
Min. edge distance, cmin 30 mm
Diameter, d 6,0 mm
Length, l 60 mm
Head form hexagon head with combined washer
Recess hexagon head
Material carbon steel
Surface bright zinc plated, A2K
European technical assessment ETA-15/0785
Fire-resistance rating F120/R120
Approval for sprinkler systems Yes
German DIBt-approval Z-21.1-2103

  • Tuotekoodi: MML060060
